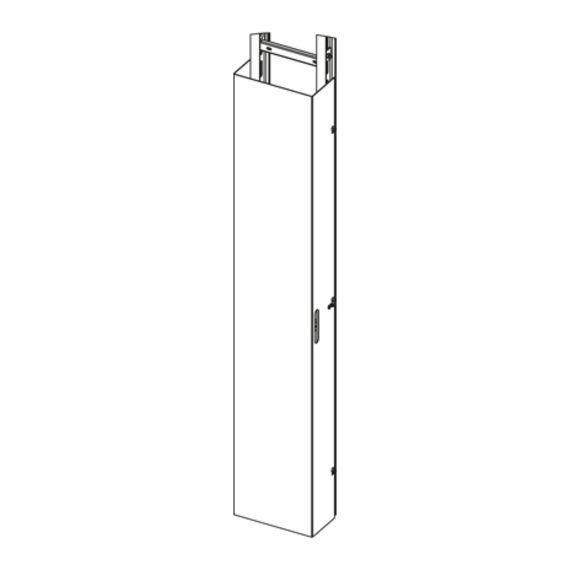

Ochrana proti nárazu s integrovanými úchopovými otvory pro upevnění na přístupové cesty.
Průběžně žárově pozinkované (Sendzimirův proces) (DIN EN 10346)
| Výška | Šířka | Délka | t Tloušťka materiálu | Hmotnost | ||
|---|---|---|---|---|---|---|
| STDE 120-20S | 120 mm | 200 mm | 2000 mm | 2.00 mm | 18.25 kg | |
| STDE 120-30S | 120 mm | 300 mm | 2000 mm | 2.00 mm | 21.39 kg | |
| STDE 120-40S | 120 mm | 400 mm | 2000 mm | 2.00 mm | 24.53 kg | |
| STDE 120-50S | 120 mm | 500 mm | 2000 mm | 2.00 mm | 27.67 kg | |
| STDE 120-60S | 120 mm | 600 mm | 2000 mm | 2.00 mm | 30.81 kg | |
| STDE 120-70S | 120 mm | 700 mm | 2000 mm | 2.00 mm | 33.95 kg | |
| STDE 120-80S | 120 mm | 800 mm | 2000 mm | 2.00 mm | 37.09 kg | |
| STDE 120-90S | 120 mm | 900 mm | 2000 mm | 2.00 mm | 40.23 kg | |
| STDE 120-100S | 120 mm | 1000 mm | 2000 mm | 2.00 mm | 43.37 kg | |
| STDE 120-110S | 120 mm | 1100 mm | 2000 mm | 2.00 mm | 49.99 kg | |
| STDE 120-120S | 120 mm | 1200 mm | 2000 mm | 2.00 mm | 53.13 kg | |
| STDE 150-20S | 150 mm | 200 mm | 2000 mm | 2.00 mm | 20.14 kg | |
| STDE 150-30S | 150 mm | 300 mm | 2000 mm | 2.00 mm | 23.28 kg | |
| STDE 150-40S | 150 mm | 400 mm | 2000 mm | 2.00 mm | 26.42 kg | |
| STDE 150-50S | 150 mm | 500 mm | 2000 mm | 2.00 mm | 29.56 kg | |
| STDE 150-60S | 150 mm | 600 mm | 2000 mm | 2.00 mm | 32.70 kg | |
| STDE 150-70S | 150 mm | 700 mm | 2000 mm | 2.00 mm | 35.84 kg | |
| STDE 150-80S | 150 mm | 800 mm | 2000 mm | 2.00 mm | 38.98 kg | |
| STDE 150-90S | 150 mm | 900 mm | 2000 mm | 2.00 mm | 42.12 kg | |
| STDE 150-100S | 150 mm | 1000 mm | 2000 mm | 2.00 mm | 45.26 kg | |
| STDE 150-110S | 150 mm | 1100 mm | 2000 mm | 2.00 mm | 51.87 kg | |
| STDE 150-120S | 150 mm | 1200 mm | 2000 mm | 2.00 mm | 55.01 kg |
žárově pozinkovaný podle BS 729 (DIN EN ISO 1461)
| Výška | Šířka | Délka | t Tloušťka materiálu | Hmotnost | ||
|---|---|---|---|---|---|---|
| STDE 120-20F | 120 mm | 200 mm | 2000 mm | 2.00 mm | 19.43 kg | |
| STDE 120-30F | 120 mm | 300 mm | 2000 mm | 2.00 mm | 22.79 kg | |
| STDE 120-40F | 120 mm | 400 mm | 2000 mm | 2.00 mm | 26.15 kg | |
| STDE 120-50F | 120 mm | 500 mm | 2000 mm | 2.00 mm | 29.51 kg | |
| STDE 120-60F | 120 mm | 600 mm | 2000 mm | 2.00 mm | 32.87 kg | |
| STDE 120-70F | 120 mm | 700 mm | 2000 mm | 2.00 mm | 36.23 kg | |
| STDE 120-80F | 120 mm | 800 mm | 2000 mm | 2.00 mm | 39.59 kg | |
| STDE 120-90F | 120 mm | 900 mm | 2000 mm | 2.00 mm | 42.95 kg | |
| STDE 120-100F | 120 mm | 1000 mm | 2000 mm | 2.00 mm | 46.31 kg | |
| STDE 120-110F | 120 mm | 1100 mm | 2000 mm | 2.00 mm | 55.14 kg | |
| STDE 120-120F | 120 mm | 1200 mm | 2000 mm | 2.00 mm | 58.50 kg | |
| STDE 150-20F | 150 mm | 200 mm | 2000 mm | 2.00 mm | 21.45 kg | |
| STDE 150-30F | 150 mm | 300 mm | 2000 mm | 2.00 mm | 24.84 kg | |
| STDE 150-40F | 150 mm | 400 mm | 2000 mm | 2.00 mm | 28.17 kg | |
| STDE 150-50F | 150 mm | 500 mm | 2000 mm | 2.00 mm | 31.53 kg | |
| STDE 150-60F | 150 mm | 600 mm | 2000 mm | 2.00 mm | 34.89 kg | |
| STDE 150-70F | 150 mm | 700 mm | 2000 mm | 2.00 mm | 38.25 kg | |
| STDE 150-80F | 150 mm | 800 mm | 2000 mm | 2.00 mm | 41.61 kg | |
| STDE 150-90F | 150 mm | 900 mm | 2000 mm | 2.00 mm | 44.97 kg | |
| STDE 150-100F | 150 mm | 1000 mm | 2000 mm | 2.00 mm | 48.33 kg | |
| STDE 150-110F | 150 mm | 1100 mm | 2000 mm | 2.00 mm | 57.15 kg | |
| STDE 150-120F | 150 mm | 1200 mm | 2000 mm | 2.00 mm | 60.51 kg |
